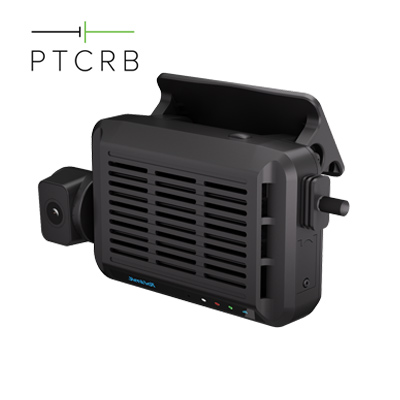

JC400

Dual-Channel Dashcam

Description

JC400 4G dashcam can significantly increase the safety efficiency and sustainability of operations that power the fleet. It allows you to add an inward-facing, or backup camera as needed. The on-device camera can monitor the road ahead, while the peripheral camera can monitor the cabin, or the rear. Furthermore, the 4G capability of the device enables seamless video streaming, live audio alerts, route replay, and video history playback. With all of these features, fleet managers can coach drivers based on data and improve operations to unlock more benefits, whether they’re managing government, logistics, ride-hailing, or taxi fleets.

JC400

Dual-Channel Dashcam

Description

FEATURES

SPECIFICATIONS

ACCESSORIES

VIDEO

DOWNLOADS

Dual-Channel Recording

Monitor the road ahead through the integrated lens and what is happening in the cab, in the rear, to the side, or to the driver through a peripheral camera to meet your specific business needs.

Video Surveillance

Powerful LTE connectivity enables the live monitoring of the vehicle's interior and exterior via an online platform; while the critical video clips in the device allows for on-demand playback after the fact from anywhere, at any time.

Video Surveillance

Multiple Alerts

Record and upload video clips or still images of customizable events such as speeding and SOS button activation.

Compact Size

The small form factor allows discreet installation behind the rearview mirror without blocking the driver's view.

Compact Size

The small form factor allows discreet installation behind the rearview mirror without blocking the driver's view.

Vehicle Immobilization

Enable you to cut off the fuel/power to the vehicle moving under 20km/h using Tracksolid Pro, which is useful if your fleet vehicle has been stolen.

Network
Standard	4G LTE Cat.4
WiFi	2.4GHz, Support AP Mode/STD Mode/WiFi Direct
Bluetooth	BLE 4.0
Band	Eurasian Version LTE-FDD: B1/B3/B5/B7/B8/B19/B20 LTE-TDD: B38/B39/B40/B41 (100M) WCDMA: B1/B2/B5/B8 GSM: B2/B3/B5/B8
Band	American Version LTE-FDD: B2/B3/B4/B5/B7/B12/B17 LTE-TDD: B38/B41 (100M) WCDMA: B2/B4/B5 GSM: B2/B5/B8
Camera
Front Camera (Main)	1920×1080/25FPS/F2.2/Full color/118° (HFoV)
Peripheral Camera (Optional )	CI01: 1280×720/15FPS/F2.0/Full color in daytime & monochrome in dim light/100° (HFoV)
	CI03: 1280×720/15FPS/F2.4/Full color in daytime & monochrome in dim light/119° (HFoV)
	CE01: 1280×720/15FPS/F2.0/Full color/IP67/125° (HFoV)
Video Format	.mp4
Configuration
GNSS	GPS/BDS
Sensor	6-axis
Microphone	Support
Speaker	Support
Interface	Micro USB1, SOS1, RS2321, Relay1
Memory Support	TF card (Up to 256GB)
SIM Card Type	Nano
LED Indication	Red (Power), Blue (Cellular), Green (GNSS)
Others
Power Supply	Power cable: B+/ACC/GND
Operating Voltage	DC 9–30V
Operating Temperature	–20°C to +65°C
Storage Temperature	–30°C to +85°C
Device Weight	233g
Device Dimension	1096952mm
Certifications	CE/FCC/RoHS

* We reserve the right to the final interpretation for this product. All information is for reference only and is subject to change without further notice.
